Metric Flat Washers

Material Stainless Steel (A2) Finish CB10 Manufacturing Standard DIN 125 - Form A For Use With Thread Size M5 (5mm) Internal Diameter (ID) 5.3mm External Diameter (OD) 10mm External Diameter (OD) Tolerance +0/-0.36mm Thickness (T) 1.1mm Thickness (T) Tolerance +0/-0.2mm   See a problem with this specification? Let us know.

Read more less

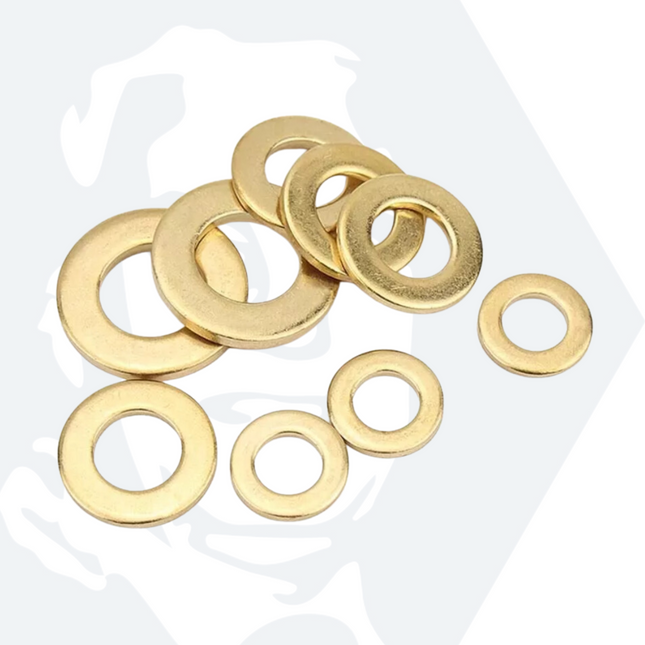

Material Brass Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M5 (5mm) Internal Diameter (ID) 5.3mm External Diameter (OD) 10mm External Diameter (OD) Tolerance +0/-0.36mm Thickness (T) 1.1mm Thickness (T) Tolerance +0/-0.2mm   See a problem with this specification? Let us know.

Read more less

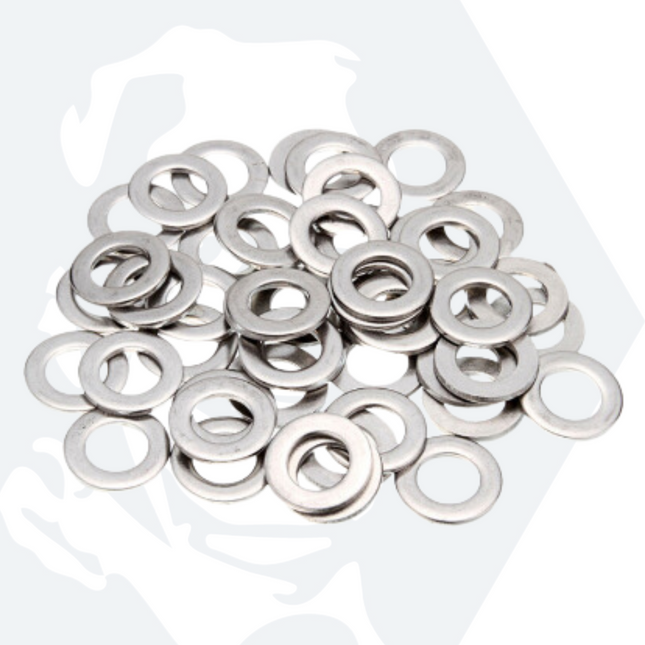

Material Stainless Steel (A2) Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M5 (5mm) Internal Diameter (ID) 5.3mm External Diameter (OD) 10mm External Diameter (OD) Tolerance +0/-0.36mm Thickness (T) 1.1mm Thickness (T) Tolerance +0/-0.2mm   See a problem with this specification? Let us know.

Read more less

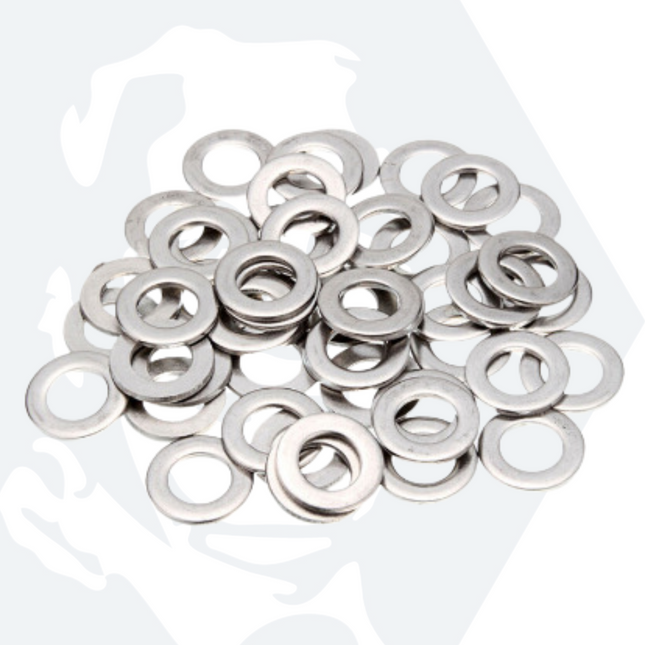

Material Stainless Steel (A4) Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M5 (5mm) Internal Diameter (ID) 5.3mm External Diameter (OD) 10mm External Diameter (OD) Tolerance +0/-0.36mm Thickness (T) 1.1mm Thickness (T) Tolerance +0/-0.2mm   See a problem with this specification? Let us know.

Read more less

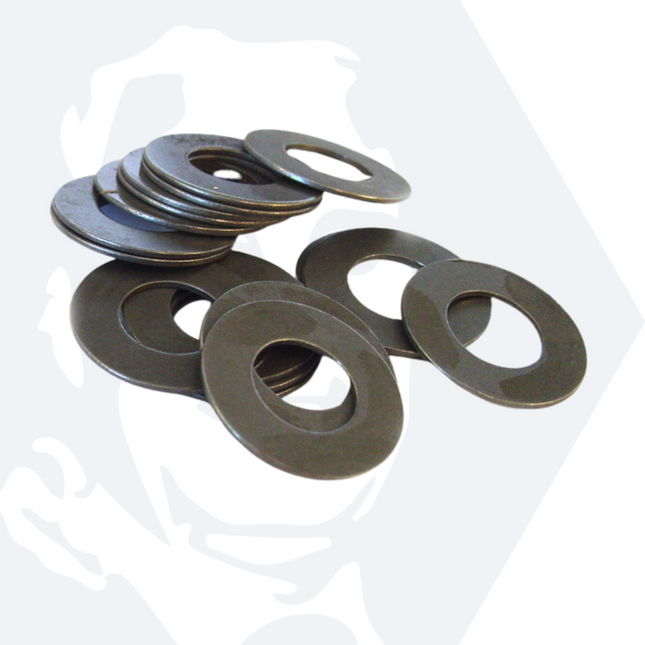

Material Steel Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M5 (5mm) Internal Diameter (ID) 5.3mm External Diameter (OD) 10mm External Diameter (OD) Tolerance +0/-0.36mm Thickness (T) 1.1mm Thickness (T) Tolerance +0/-0.2mm   See a problem with this specification? Let us know.

Read more less

Material Steel Finish Zinc Plated Manufacturing Standard DIN 125 - Form A For Use With Thread Size M5 (5mm) Internal Diameter (ID) 5.3mm External Diameter (OD) 10mm External Diameter (OD) Tolerance +0/-0.36mm Thickness (T) 1.1mm Thickness (T) Tolerance +0/-0.2mm

Read more less

Material Steel Finish Zinc Plated Yellow Passivated Manufacturing Standard DIN 125 - Form A For Use With Thread Size M5 (5mm) Internal Diameter (ID) 5.3mm External Diameter (OD) 10mm External Diameter (OD) Tolerance +0/-0.36mm Thickness (T) 1.1mm Thickness (T) Tolerance +0/-0.2mm   See a problem with this specification? Let us know.

Read more less

Material Aluminium Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M5 (5mm) Internal Diameter (ID) 5.3mm External Diameter (OD) 10mm External Diameter (OD) Tolerance +0/-0.36mm Thickness (T) 1.1mm Thickness (T) Tolerance +0/-0.2mm   Ensure a secure and corrosion-resistant fastening with our M5 Form A Flat Washers made from high-quality Aluminium. Designed to DIN 125 standards, these flat washers provide an even load distribution under the head of a bolt or screw, preventing surface damage and enhancing joint integrity. Ideal for lightweight applications, the aluminium construction offers excellent resistance to rust, making them perfect for use in damp or outdoor environments. These 5.3mm internal diameter washers are commonly used in electrical, automotive, marine, and general engineering industries where non-magnetic and lightweight properties are essential.

Read more less

Material Steel Finish Zinc Plated Yellow Passivated For Use With Thread Size M5 (5mm) Internal Diameter (ID) 5.3mm External Diameter (OD) 15mm Thickness (T) 1.2mm

Read more less

Material Plastic Polyamide Nylon 6.6 Manufacturing Standard DIN 125 - Form A For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 12mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm See a problem with this specification? Let us know.

Read more less

Material Stainless Steel (A2) Finish CB10 Manufacturing Standard DIN 125 - Form A For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 12mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Brass Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 12mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Stainless Steel (A2) Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 12mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Stainless Steel (A4) Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 12mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Steel Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 12mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Steel Finish Zinc Plated Manufacturing Standard DIN 125 - Form A For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 12mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm

Read more less

Material Aluminium Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 12mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   Ensure a secure and corrosion-resistant fastening with our M6 Form A Flat Washers made from high-quality Aluminium. Designed to DIN 125 standards, these flat washers provide an even load distribution under the head of a bolt or screw, preventing surface damage and enhancing joint integrity. Ideal for lightweight applications, the aluminium construction offers excellent resistance to rust, making them perfect for use in damp or outdoor environments. These 6.4mm internal diameter washers are commonly used in electrical, automotive, marine, and general engineering industries where non-magnetic and lightweight properties are essential.

Read more less

Material Steel Finish Zinc Plated Yellow Passivated Manufacturing Standard NF E25-513 - Form M For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 14mm Thickness (T) 1.2mm   See a problem with this specification? Let us know.

Read more less

Material Steel Finish Zinc Plated Yellow Passivated For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 25mm Thickness (T) 1.25mm

Read more less

Material Steel Finish Zinc Plated Yellow Passivated For Use With Thread Size M6 (6mm) Internal Diameter (ID) 6.4mm External Diameter (OD) 30mm Thickness (T) 1.25mm

Read more less

Material Brass Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M7 (7mm) Internal Diameter (ID) 7.4mm External Diameter (OD) 14mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Stainless Steel (A2) Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M7 (7mm) Internal Diameter (ID) 7.4mm External Diameter (OD) 14mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Stainless Steel (A4) Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M7 (7mm) Internal Diameter (ID) 7.4mm External Diameter (OD) 14mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Steel Finish Zinc Plated Manufacturing Standard DIN 125 - Form A For Use With Thread Size M7 (7mm) Internal Diameter (ID) 7.4mm External Diameter (OD) 14mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm

Read more less

Material Plastic Polyamide Nylon 6.6 Manufacturing Standard DIN 125 - Form A For Use With Thread Size M8 (8mm) Internal Diameter (ID) 8.4mm External Diameter (OD) 16mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm See a problem with this specification? Let us know.

Read more less

Material Stainless Steel (A2) Finish CB10 Manufacturing Standard DIN 125 - Form A For Use With Thread Size M8 (8mm) Internal Diameter (ID) 8.4mm External Diameter (OD) 16mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Brass Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M8 (8mm) Internal Diameter (ID) 8.4mm External Diameter (OD) 16mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Stainless Steel (A2) Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M8 (8mm) Internal Diameter (ID) 8.4mm External Diameter (OD) 16mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Stainless Steel (A4) Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M8 (8mm) Internal Diameter (ID) 8.4mm External Diameter (OD) 16mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   See a problem with this specification? Let us know.

Read more less

Material Steel Finish Zinc Plated Manufacturing Standard DIN 125 - Form A For Use With Thread Size M8 (8mm) Internal Diameter (ID) 8.4mm External Diameter (OD) 16mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm

Read more less

Material Aluminium Finish Natural Manufacturing Standard DIN 125 - Form A For Use With Thread Size M8 (8mm) Internal Diameter (ID) 8.4mm External Diameter (OD) 16mm External Diameter (OD) Tolerance +0/-0.43mm Thickness (T) 1.8mm Thickness (T) Tolerance +0/-0.4mm   Ensure a secure and corrosion-resistant fastening with our M8 Form A Flat Washers made from high-quality Aluminium. Designed to DIN 125 standards, these flat washers provide an even load distribution under the head of a bolt or screw, preventing surface damage and enhancing joint integrity. Ideal for lightweight applications, the aluminium construction offers excellent resistance to rust, making them perfect for use in damp or outdoor environments. These 8.4mm internal diameter washers are commonly used in electrical, automotive, marine, and general engineering industries where non-magnetic and lightweight properties are essential.

Read more less

Material Steel Finish Zinc Plated Yellow Passivated For Use With Thread Size M8 (8mm) Internal Diameter (ID) 8.4mm External Diameter (OD) 24mm Thickness (T) 2mm

Read more less

Material Steel Finish Zinc Plated Yellow Passivated For Use With Thread Size M8 (8mm) Internal Diameter (ID) 8.4mm External Diameter (OD) 30mm Thickness (T) 1.5mm

Read more less
