Description

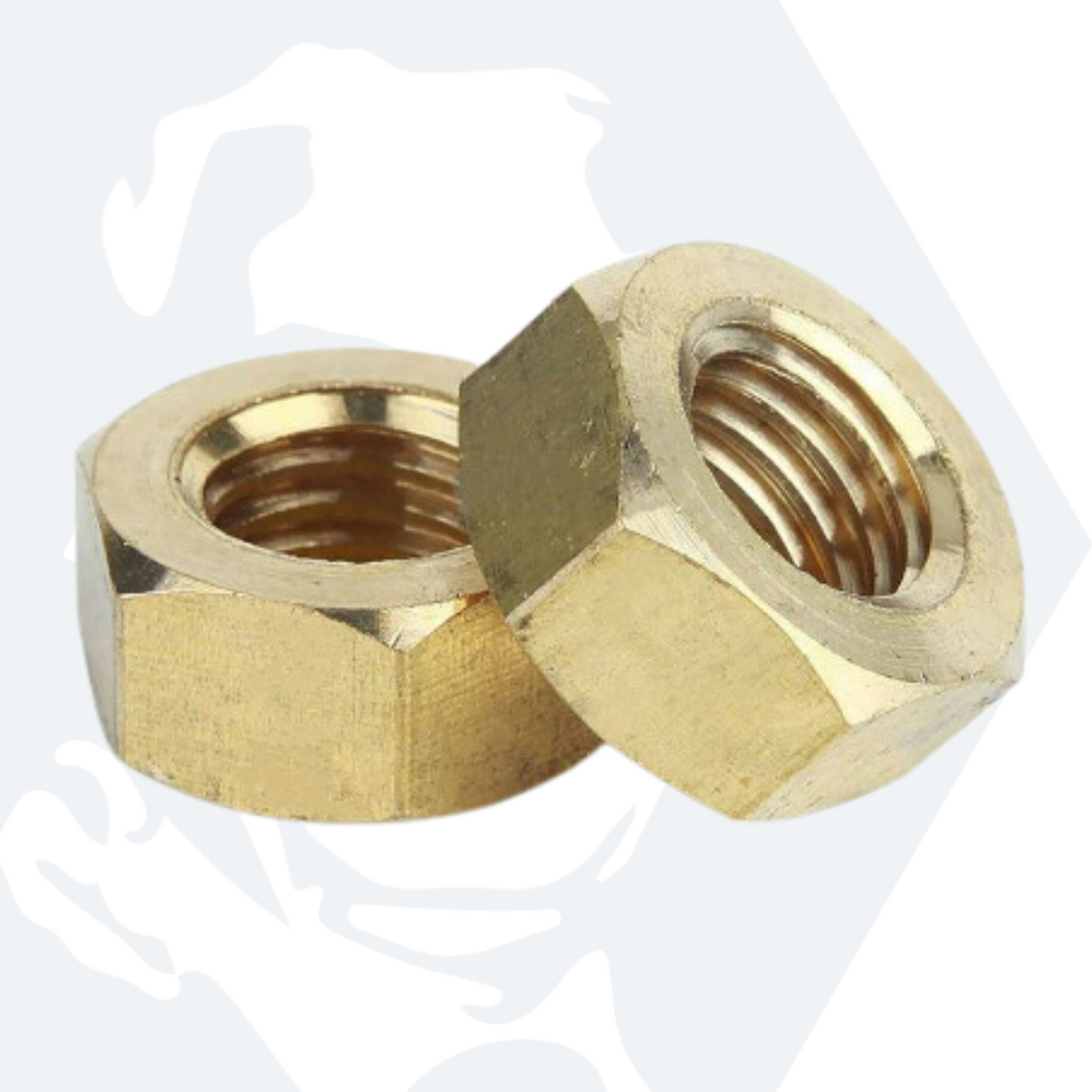

M12 Hexagon Nuts are small hexagonal nuts with an M12 thread size, conforming to the DIN 934 standard, and made from Brass, which is commonly used for general-purpose applications where corrosion resistance is required. These nuts are typically used with M12 screws or bolts, and they have a hexagonal shape, which allows for easy tightening and loosening using a wrench or a socket tool.
| Material |
Brass |
| Finish |
Natural |
| Manufacturing Standard |
DIN 934 |
| For Use With Thread Size |
M12 (12mm), Right Hand Thread |
| Screw Thread Pitch |
1.75mm |
Nut Thickness (T)
|
10mm |
| Nut Thickness (T) Tolerance |
+0/-0.36mm |
Nut Width A/F (J)
|
19mm |
Nut Width A/F (J) Tolerance
|
+0/-0.33mm |
