Description

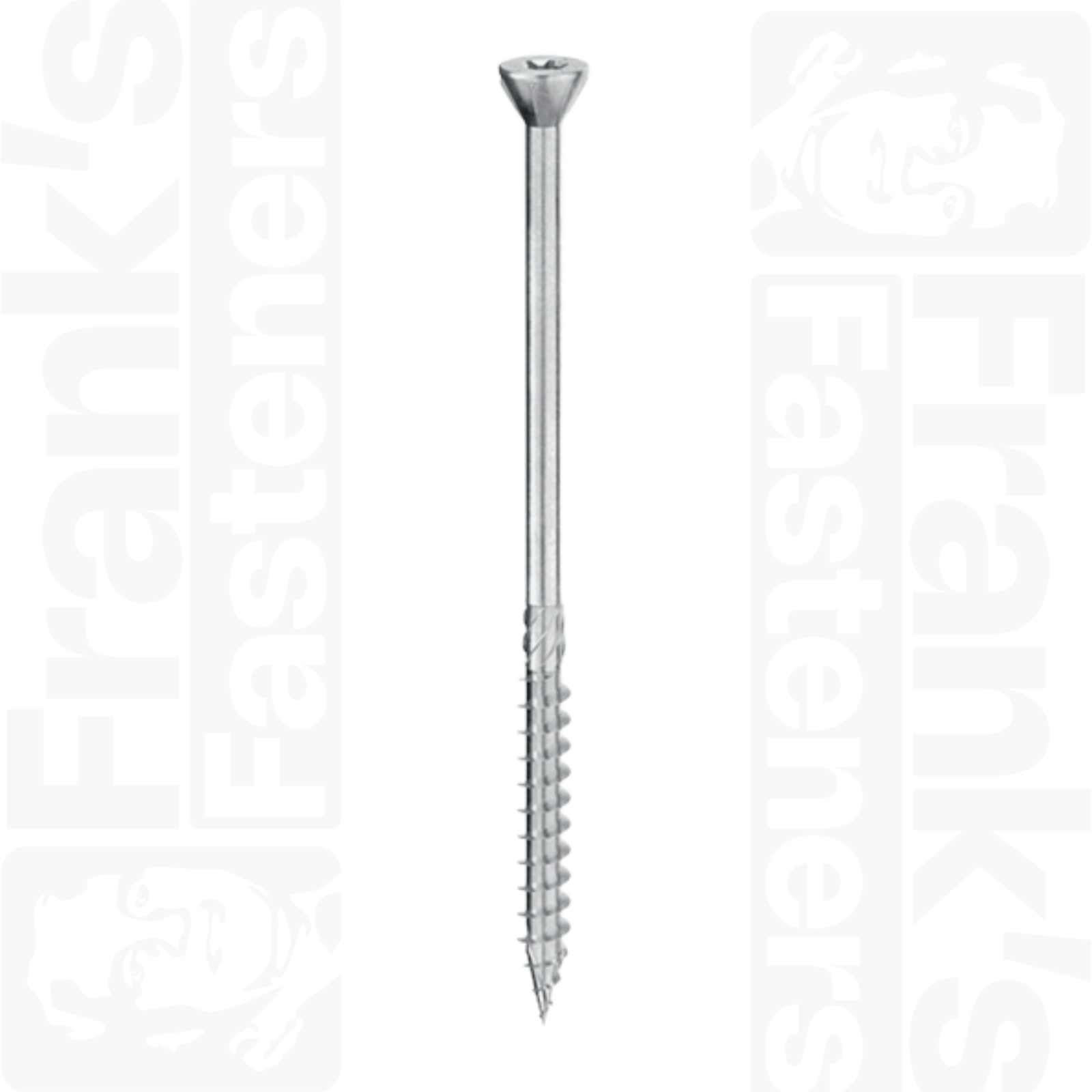

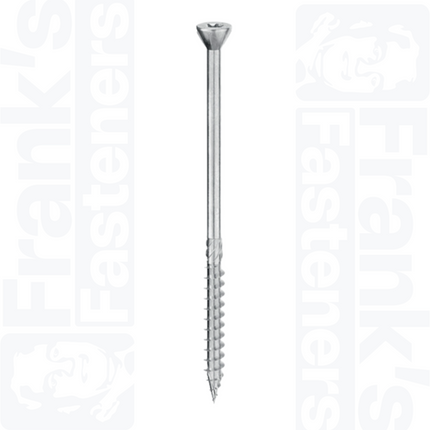

SHS 60° COUNTERSUNK SCREW
● SMALL HEAD AND 3 THORNS TIP
The 60° head and 3 THORNS tip allow easy insertion of the screw into small thickness without creating openings in the timber.
● OUTDOOR ON ACID WOOD
Martensitic stainless steel. This stainless steels offers the highest mechanical performance compared to the other available stainless steels. Suitable for outdoor applications and on acid wood, but away from corrosive agents (chlorides, sulphides, etc.).
● SMALL ELEMENTS FASTENING
The smaller diameter versions are ideal for fixing beads or small elements, the 3.5 mm diameter version is perfectly suited for fastening tongue-and-groove boards.
FIELDS OF USE
• timber based panels
• solid timber
• glulam (Glued Laminated Timber)
• CLT, LVL
• high-density woods and acid woods

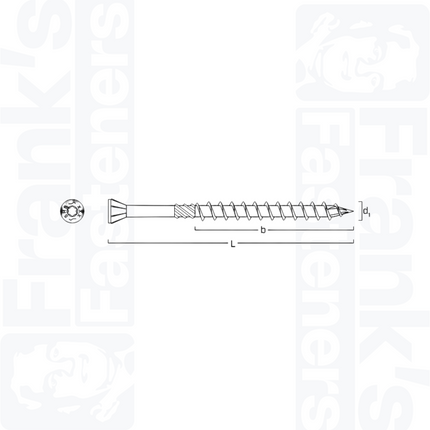

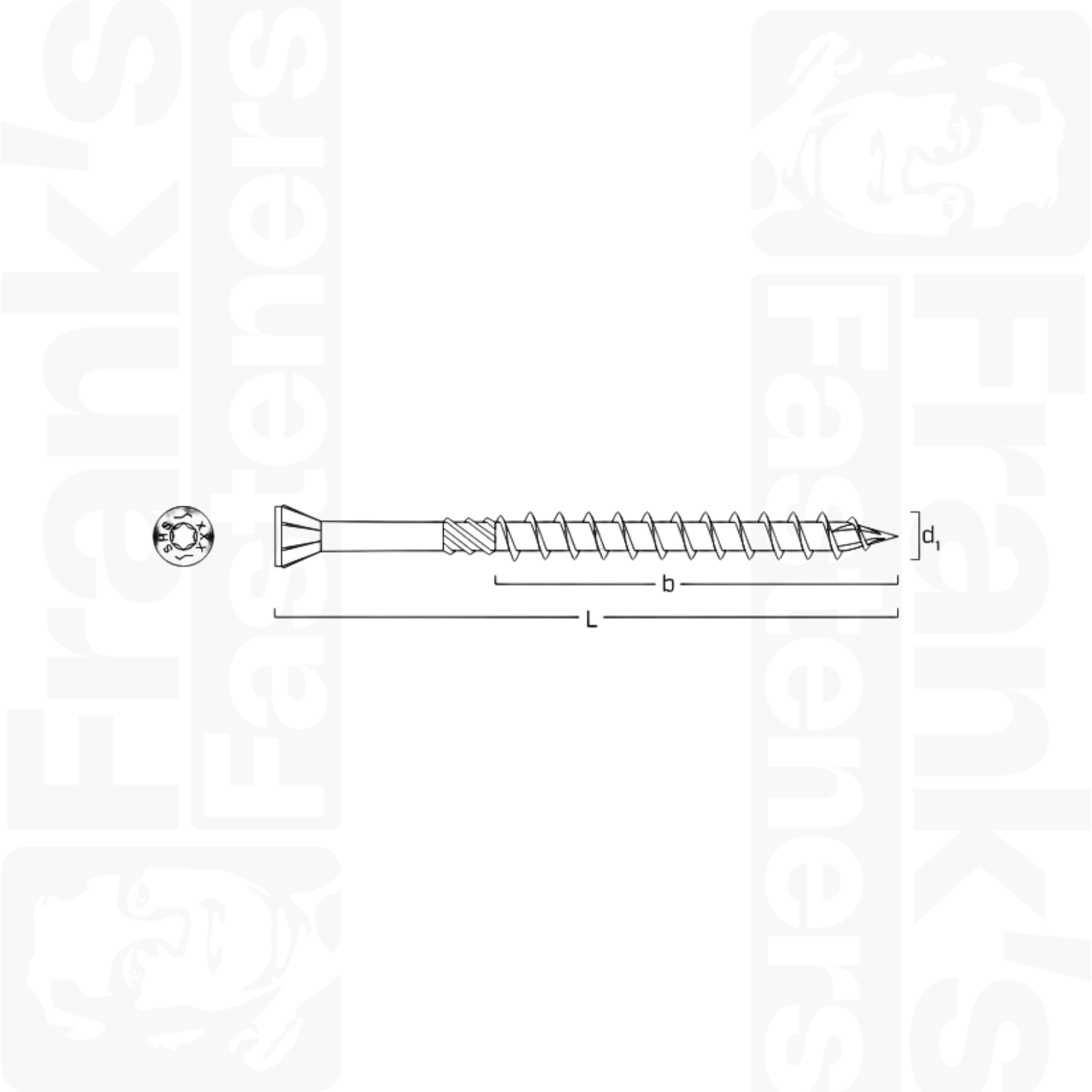

| d1 |
4.5mm TX20 |
| L |
60mm |
| b |
35mm |
| A |
25mm |
| Nominal Diameter (d1) |
4.5mm |
| Head Diameter |
7.50mm |
| Thread Diameter |
2.80mm |
| Shank Diameter |
3.15mm |
| Pre-Drilling Hole Diameter |
2.5mm |
For more detailed information, visit the Rothoblaas Datasheet page.
