Description

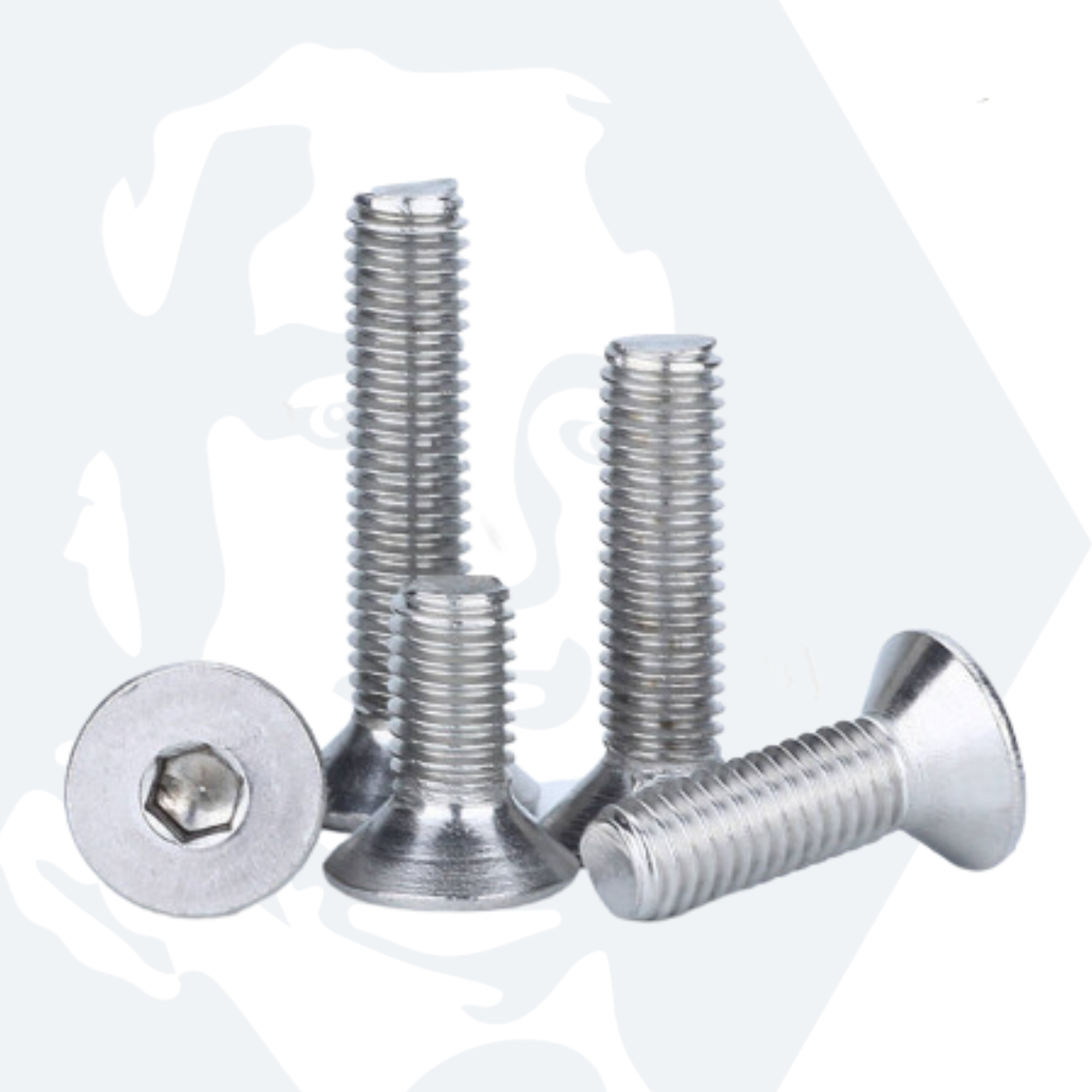

M3 Socket Countersunk Screws (DIN 7991) in Stainless Steel (A2) are another type of screws with specific characteristics:
-
M3: This is the metric thread size of the screw, indicating a 3-millimeter diameter.
-
Socket: These screws feature a socket (hexagonal) drive, requiring a hex key or Allen wrench for installation and removal. The socket drive design provides a secure and efficient way to apply torque.
-
Countersunk: Countersunk screws have a conical head with a flat top, allowing them to sit flush with the surface when installed, providing a clean and smooth finish.
-
DIN 7991: This refers to the DIN specification that the screws conform to. DIN 7991 specifies the dimensions, tolerances, and other requirements for socket countersunk screws.
-
Stainless Steel (A2): Stainless steel is a corrosion-resistant material, and A2 is a specific grade or alloy within the stainless steel family. In this context:
-
Stainless Steel: Stainless steel is highly resistant to corrosion, making it suitable for a wide range of applications, including those exposed to moisture, humidity, or chemicals.
-
A2: A2 stainless steel, also known as AISI 304, is a popular stainless steel grade. It is known for its excellent corrosion resistance, making it suitable for general-purpose applications. It contains about 18% chromium and 8% nickel, which contribute to its corrosion resistance properties.
| Material |
Stainless Steel (A2) |
| Finish |
Natural |
| Manufacturing Standard |
DIN 7991 |
| Screw Thread Pitch |
0.5mm |
| Thread |
M3 (3mm), Right Hand Thread |
| Countersunk Angle (CA) |
90 Degrees
|
| Head Length [Max] (H) |
1.86mm |
| Head Diameter [Max] (D) |
6.72mm |
| Head Diameter [Min] (D) |
5.54mm |
Hexagon Across Flats / Allen Key Size (J)
|
2mm |
Hexagon Depth (P)
|
1.1mm
|
For larger quantities or sizes not listed, please email frank@franksfasteners.co.uk and we will be happy to provide you with a quotation.
